Polarised 3D SYSTEMS
Polarised 3D Systems
The UNIPOLAR 3D SYSTEM for cinemas is a polarised 3D system, that is based on the projector presenting a alternating segments of circularly polarised material.
Mounted in front of the projector lens, this filter is synchronised to the projected images, giving each frame a polarisation perpendicular to the previous one, which can be viewed with polarized 3D glasses. In earlier, the filter wheel can be lowered out of the lens’ path for non-3D material. It has been noted that an earlier version of the spinning polarized filter malfunctioned, but the problem has been addressed with an updated replacement filter which was supplied to all theatres using the electronic shutter method system.
UNIPOLAR 3D SYSTEM offers different types of 3D cinema technology (including those based on a polarized filter, as well as solid-state liquid crystal, based on different cinema configurations. The company also provides passive 3D EYEWEAR that is optically matched to their 3D systems.

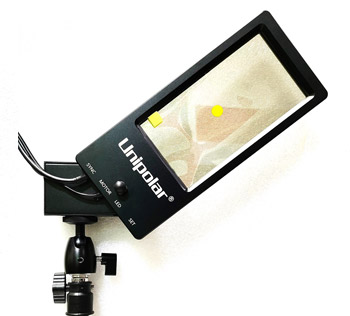

SINGLE LENS 3D SYSTEM X17S
Light efficiency: 16%
Crosstalk ratio: 0.5%
Throw ratio: 1.25:1
Sharpness: Within Half Pixel
Surface coating: AR / HS / Hard Coating
Hardness of surface: 9H
TMS: Yes
Frame rate: 24fps, 48fps, 60fps, 120fps
FAN: Not Required
Power supply: From 3D Interface
LUMENS :Upto 20000

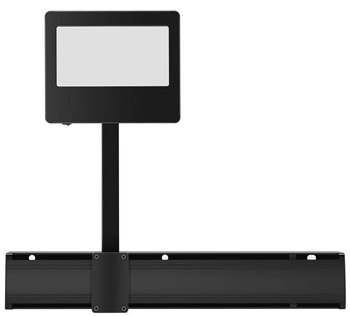

SINGLE LENS 3D SYSTEM X17
Light efficiency: 17%
Crosstalk ratio: 0.5%
Throw ratio: 1.25:1
Sharpness: Within Half Pixel
Surface coating: AR / HS / Hard Coating
Hardness of surface: 9H
TMS: Yes
Frame rate: 24fps, 48fps, 60fps, 120fps
FAN: Not Required
Power supply: From 3D Interface
LUMENS :Upto 50000

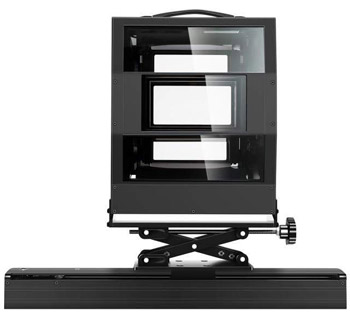

TRIPLE BEAM X20
Light efficiency: 34%
Crosstalk ratio: 1.0%
Throw ratio: 1.5 : 1 or above
Sharpness: Within Half Pixel
Surface coating: AR / AS / Hard Coating
Hardness of surface: 9H
TMS: Yes
Frame rate: 24fps, 48fps, 60fps, 120fps
FAN: Not Required
Power supply: From 3D Interface
LUMENS :Upto 50000

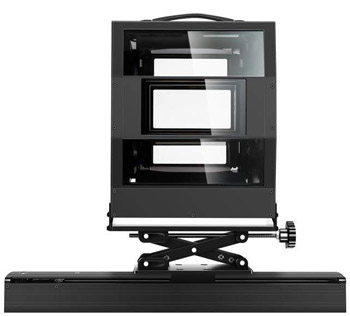

LASER TRIPLE BEAM X21L
Light efficiency: 36%
Crosstalk ratio: 1.0%
Throw ratio: 1.5 : 1 or above
Sharpness: Within Half Pixel
Surface coating: AR / AS / Hard Coating
Hardness of surface: 9H
TMS: Yes
Frame rate: 24fps, 48fps, 60fps, 120fps
FAN: Not Required
Power supply: From 3D Interface
LUMENS :Upto 50000

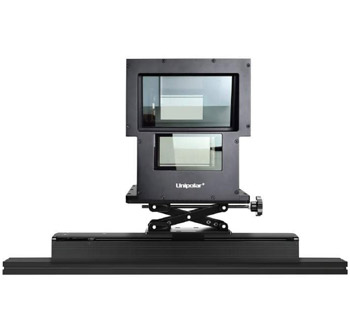

DOUBLER 3D SYSTEM MODEL [X22S ]
Light efficiency: 34%
Crosstalk ratio: 1.0%
Throw ratio: 2.1:1
Sharpness: Within Half Pixel
Surface coating: AR / HS / Hard Coating
Hardness of surface: 9H
TMS: Yes
Frame rate: 24fps, 48fps, 60fps, 120fps
FAN: Not Required
Power supply: From 3D Interface
LUMENS :Upto 50000
X350L (1:1)
Light efficiency: 36%
Crosstalk ratio: 1.0%
Throw ratio: 1 : 1 or above
Sharpness: Within Half Pixel
Surface coating: AR / AS / Hard Coating
Hardness of surface: 9H
TMS: Yes
Frame rate: 24fps, 48fps, 60fps, 120fps
FAN: Not Required
Power supply: From 3D Interface
LUMENS :Upto 50000
